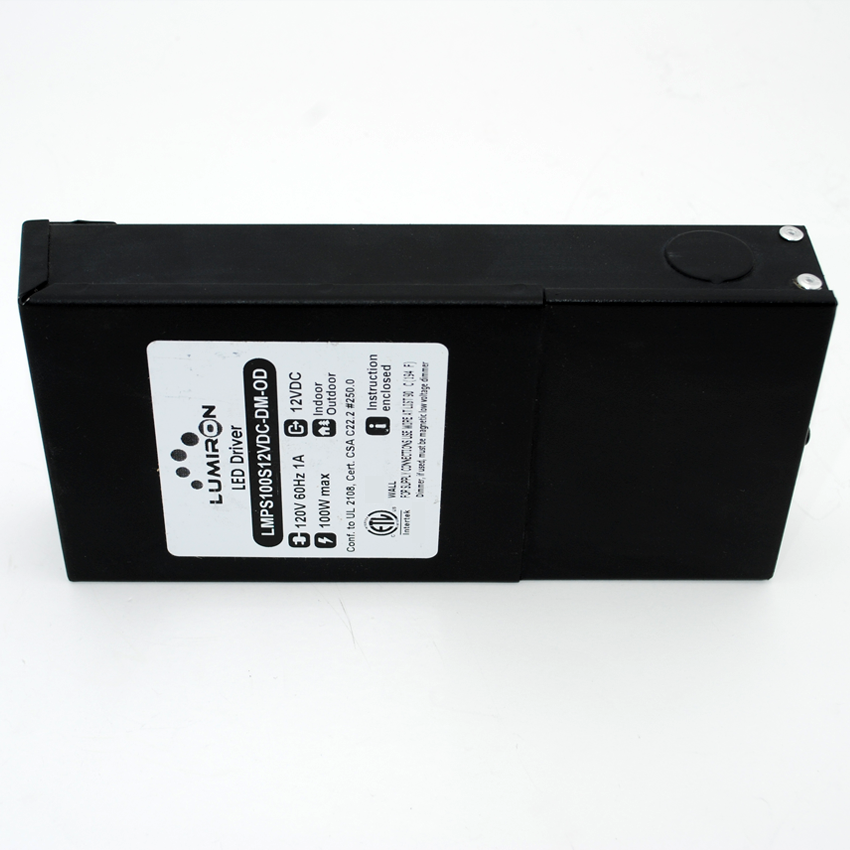

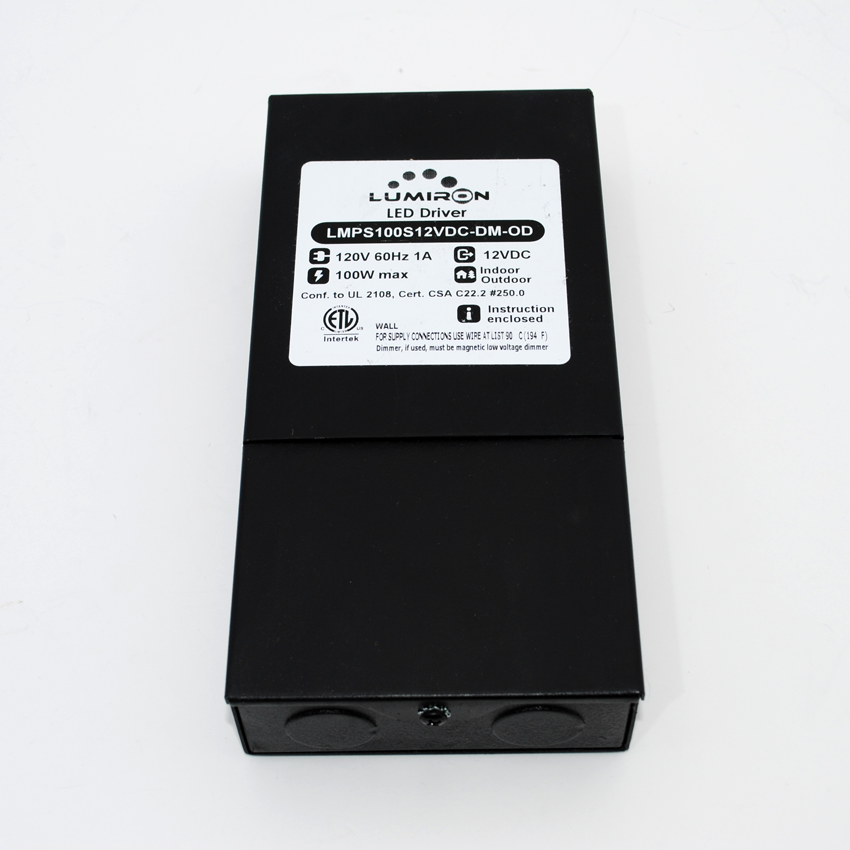

Dimmable Power Supply Magnetic MLV 100W 12V

Description Transformer Power Supply Magnetic MLV 100W 12V with any LV magnetic dimmer as long as you cover dimmer’s min load. Temperature class B(130°C). Input leads are 18AWG 600V. Output leads are 18AWG 300V. Leads max. operational temperature is 105°C. Thermal self-resets primary breaker 2A. Thermal self-resets secondary breaker 13A.   Housing The actual transformer for Power Supply Magnetic MLV 100W 12V is encapsulated in the enclosure. The enclosure is Black Powder Coated Steel, NEMA 3R rated. Wiring compartment has 5 knockouts sizes for 3/8 inch screw cable connectors. Enclosure Temperature does not exceed 75°C at 45°C ambient and fully loaded. Dimensions (inch): H = 8.13, W = 3.93, D = 1.59 Weight (LBs): 4   Electrical Parameters Input Voltage: 120V 60Hz Max. input current at full load: 1.1A Output voltage without load: 13.6VDC Output voltage fully loaded: 11.5VDC Max. Total Wattage: 100W Max. Output Current: 8.3A Efficiency: 85%
