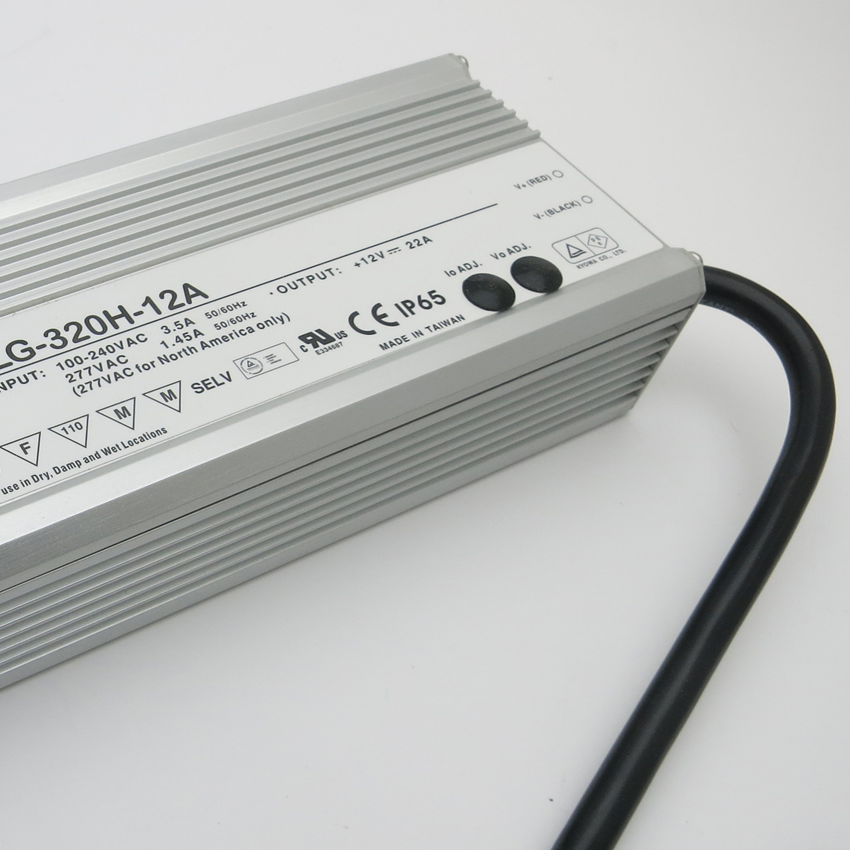

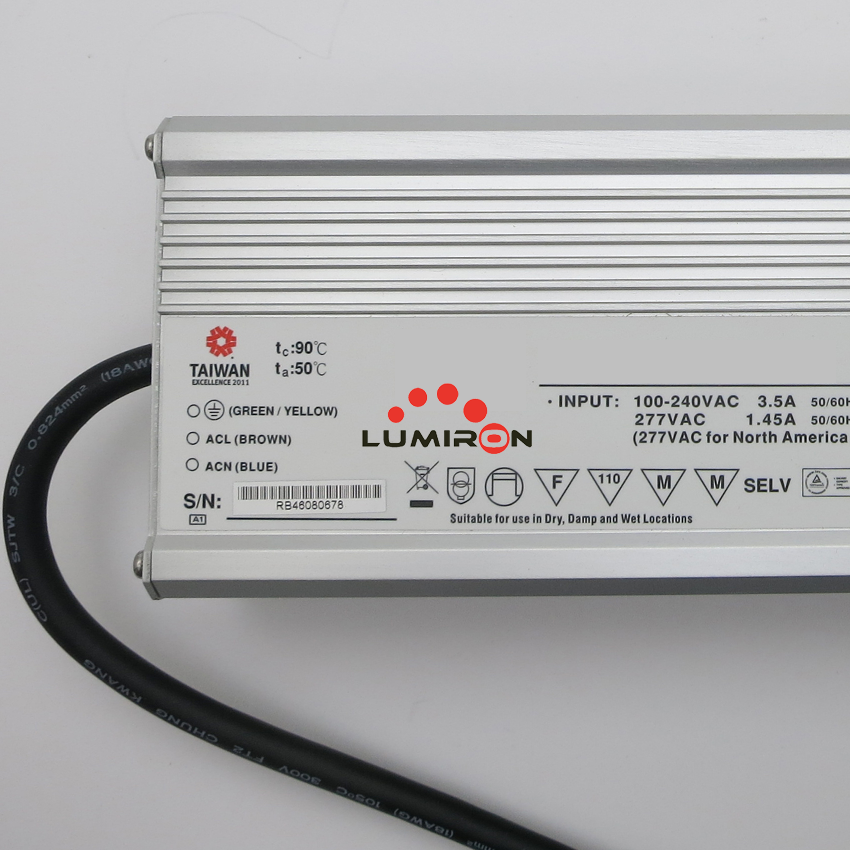

Power Supply Electronic 320W 12V

Description The LUMIRON Power Supply Electronic 320W 12V is a transformer module designed to produce outstanding dimmable lighting solutions. Part Number: 7000PS – 4306D (Dimmable) Model: LMPG – 320W – 12VDC – D Maximum Input Current: 3.5A Output Connector Type: Stripped and Tinned Number of Outputs: 1 Product Type: AC to DC Power Supply Efficiency: 91% Minimum Isolation Voltage: 3750V Operating Temperature-Min: -40c Operating Temperature-Max: 70c Length: 9.92″ (252mm) Width: 3.54″ (90mm) Height: 1.72″ (43.8mm) Agency Approvals: UL/CUL/TUV/CB/CE Type: Auto Switching Style: Enclosed Primary Primary Output Voltage: 12VDC Output Current: 22A Maximum Output Power: 264W Input Voltage: 90 to 305VAC Input Frequency: 47 to 63
